COMPANY NEWS: Open Mind Make your dream bike a reality with hyperMILL

| Editor: Susanne Hertenberger

With its mountain bike frame milled from solid stock, North Bucks Machining Ltd, based in Milton Keynes, UK, has created a new reference workpiece that demonstrates the many possibilities offered by the hyperMILL® CAM suite from OPEN MIND Technologies.

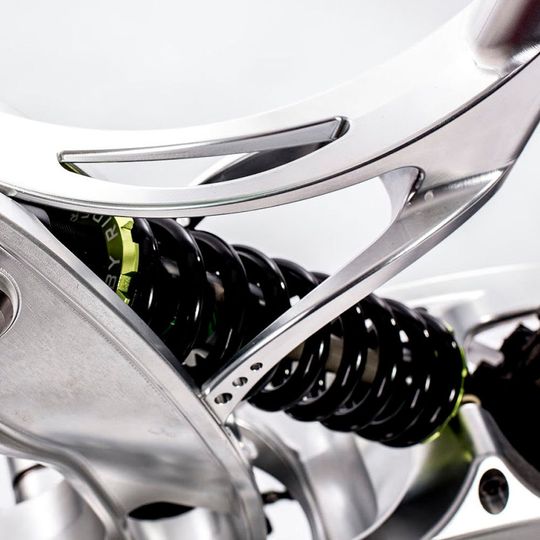

Section of the mountain bike frame
Section of the mountain bike frame
(Source: North Bucks Machining)

Engineer Stewart Palmer introduced the hyperMILL® CAM system to his parents' family business to make more efficient use of the company's 5-axis machining centre. The extremely powerful machining strategies of the CAM software allowed him to realise his personal dream of developing his own weld-free and weight-optimised downhill mountain bike frame.

The main frame, seat post and swing arm are each milled from solid aluminium blocks. Here, Palmer took advantage of the roughing module in the hyperMILL® MAXX Machining performance package. The high-performance cutting strategies allowed North Bucks Machining to achieve large stock removal volumes in the shortest time possible. Palmer explains: “Using hyperMILL®, we were able to machine the main frame in one hour and 30 minutes. In the past, this took two hours and 20 minutes. This is equivalent to a reduction of around 40 percent.”

An aluminium frame weighing less than 7kg was machined from raw material with a starting weight of 165kg. But this isn't enough for Palmer: He now seeks to further enhance the design of the frame to reduce the overall weight to 5kg.

Gallery

Perfect Surface

The finishing strategies offered by hyperMILL® were also very important as the bike frames produced by North Bucks Machining do not undergo secondary finishing operations. It's only since calculating the toolpaths with the CAM software from OPEN MIND that the company has been able to achieve the desired surface finish.

About OPEN MIND Technologies AG

OPEN MIND is one of the world’s most sought-after developers of powerful CAM solutions for machine and controller-independent programming.

OPEN MIND develops optimized CAM solutions that include a high number of innovative features not available elsewhere to deliver significantly higher performance in both programming and machining. Strategies such as 2,5D, 3D as well as 5axis milling/mill turning, and machining operations like HSC and HPC are efficiently built into the hyperMILL® CAM system. hyperMILL® provides the maximum possible benefits to customers thanks to its full compatibility with all current CAD solutions and extensive programming automation.

OPEN MIND strives to be the best and most innovative CAM/CAD manufacturer in the world, helping it become one of the top five in the CAM/CAD industry according to the NC Market Analysis Report 2016 compiled by CIMdata. The CAM/CAD solutions of OPEN MIND fulfil the highest demands in the automotive, tool and mould manufacturing, production machining, medical, job shops, energy and aerospace industries. OPEN MIND is represented in all key markets in Asia, Europe and America, and is a Mensch und Maschine company.

You can find more information at www.openmind-tech.com.
